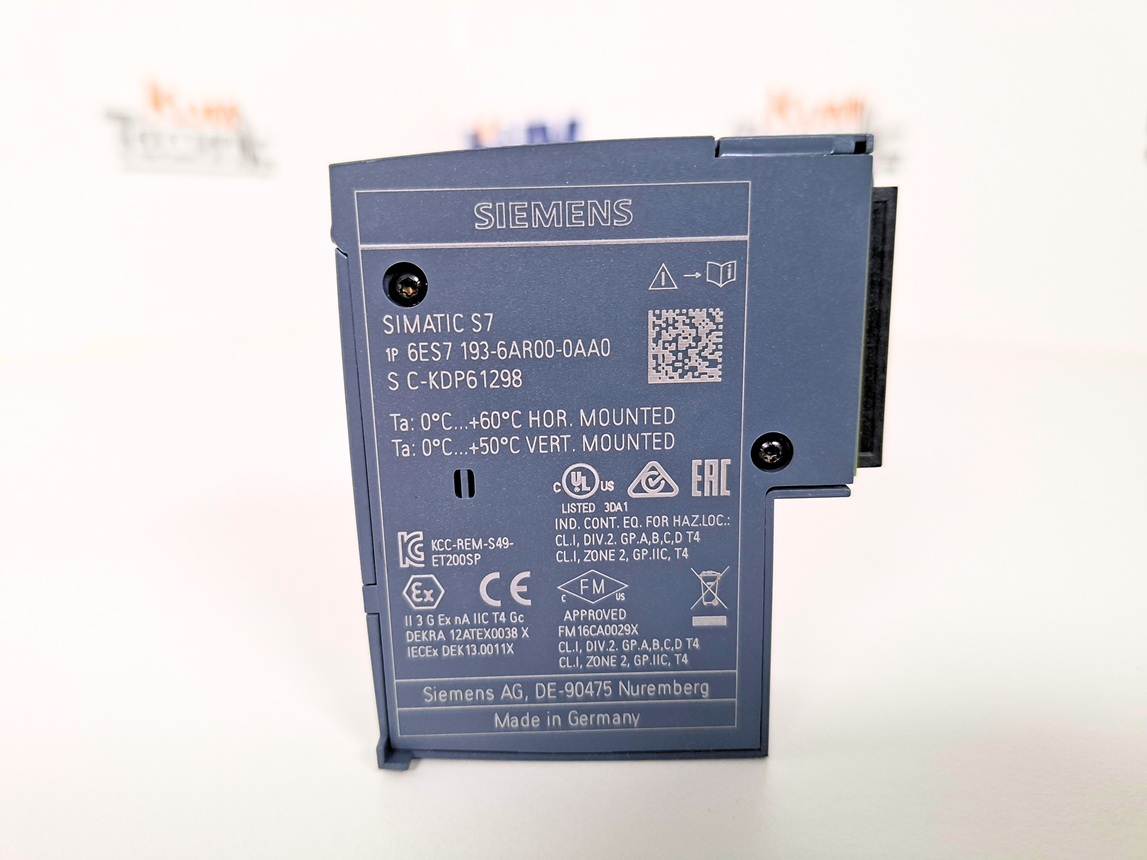

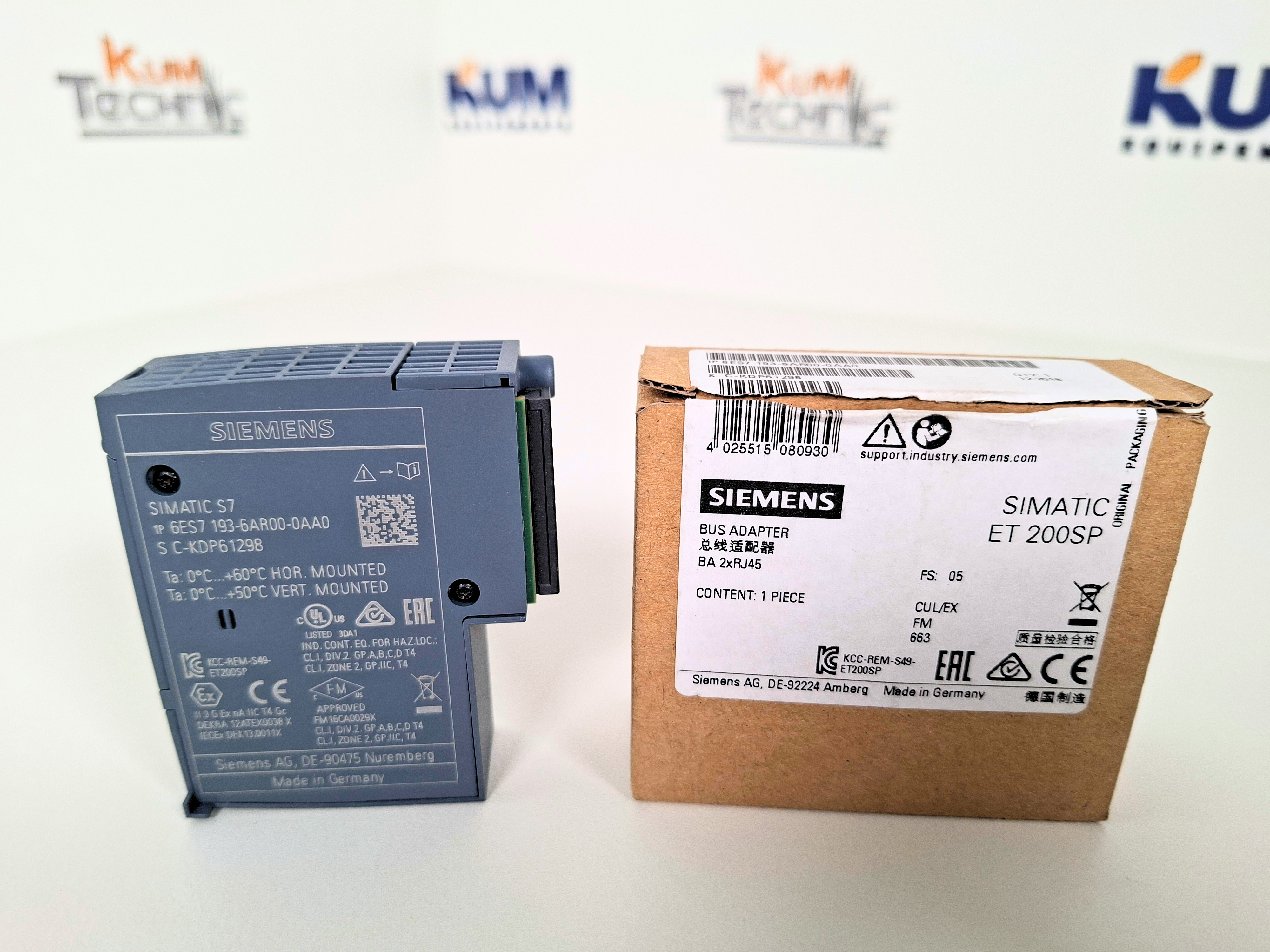

Siemens SIMATIC ET200SP – Bus Adapter BA 2xRJ45 The BA 2xRJ45 Bus Adapter is a PROFINET interface module for SIMATIC ET200SP systems. It provides network connectivity through two integrated RJ45 ports, enabling the daisy‑chaining or networking of ET200SP remote I/O stations. This module is designed for demanding industrial environments and hazardous‑area installations (ATEX / Class I Div.2).

Main Features

• Brand: Siemens
• Series: SIMATIC ET200SP
• Model: Bus Adapter BA 2xRJ45
• Type: PROFINET bus adaptateur
• Ports: 2×RJ45 (P1R / P2R)
• Function : PROFINET network interface for ET200SP
• Hardware version: FS05
• Indicators : LK1 / LK2 (network status)
• Certifications :
  • UL Listed
  • ATEX Ex II 3G Ex nA IIC T4 Gc
  • IECEx
  • FM Approved
  • Class I, Div.2, Groups A‑D
  • Zone 2, IIC, T4
• Température d’utilisation : 0°C à +60°C (montage horizontal) 0°C à +50°C (montage vertical

Condition

• Good visual condition
• Fully functional
• Suitable for immediate commissioning
• Tested and operational

Applications

• PROFINET networks
• ET200SP remote I/O stations
• Siemens S7 / ET200SP automation systems
• ATEX / Class I Div.2 installations
• Daisy‑chaining communication modules
